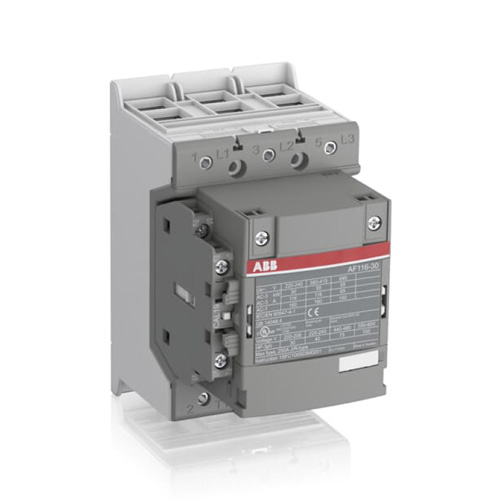

ABB (MC) AF116-30-11-13

Product Type : Block Type Rated Operational Current AC-1 (Ie) : "160 A, (690 V) 40 °C 145 A, (690 V) 60 °C 130 A, (690 V) 70 °C " Rated Operational Current AC-3 (Ie) : "116 A, (220 / 230 / 240 V) 60 °C 116A, (440 V) 60 °C 65 A, (690 V) 60 °C " Rated Operational Power AC-3 : "30 kW, (220 / 230 / 240 V) 55 kW, (380-440 V) 55 kW, (690 V) " Number of Main Contacts (NO) : 3 Number of Main Contacts (NC) : 0 Number of Auxiliary Contacts (NO) : 1 Number of Auxiliary Contacts (NC) : 1 Rated Insulation Voltage (Ui) : 1000 V, acc. to IEC 60947-4-1 Rated Operational Voltage : Main Circuit 1000 V Rated Frequency (f) : "Control Circuit 50 / 60 Hz, Main Circuit 50 / 60 Hz" Maximum Breaking Capacity : "2000A at 440V, 1000A at 690V " Maximum Electrical Switching Frequency : "(AC-1) 300 cycles per hour, (AC-3) 300 cycles per hour" Maximum Mechanical Switching Frequency : 300 cycles per hour Terminal Type : Double Clamp Dimension : 150 mm x 90 mm x 126 mm Product Net Weight (Kg) : 1.55
